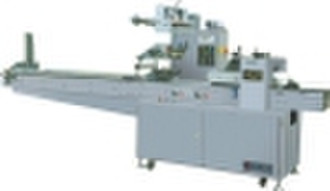

GZB260-B High Speed Automatic Pillow type Packing

pillow packing machineThe pillow type pack1. Convenient for the replace of the product, hence applicable for products of various different sizes.2. The heat-sealing cutter is always open at halt mode.3. Equipped with adjustment mechanism for conveyor chain without stop.4. Equipped with frequency converter of high quality for optional adjustment of different speeds.5. Equipped with toothed-chain type non-stage transmission, hence a wide range of adjustment for the length of the container bag.Scope of ApplicationSuitable for the packing of foodstuffs, medicines, travel products, cultural articles, daily necessities, and metal fittings (nails. wires. hinges. bolts. and locks) Main technical parameters:Max.film width 260mm Max packaging capacity(according to its material) 20-300 /m Suitable film thickness 0.03-0.06mm Length of bags 60-150mm Packaging width 20-80mm Packaging height 5-35mm Total power 2.4Kw 220v Overall dimensions(L×W×H) 4000×880×1500mm Weight 650kg Configuration Options: 1. Single heat-sealing cutter Two heat-sealing cutters Four heat-sealing cutters.2.Profiled perforation (lift type) device with patent No.032089228.3.Ink wheel date coder for the impressing of the date at the intermediate sealing.4. Nitrogen charging device.5. Automatic un-loader.6. Model A: its shell is of carbon-steel, and Model B: its shell is of stainless steel.
