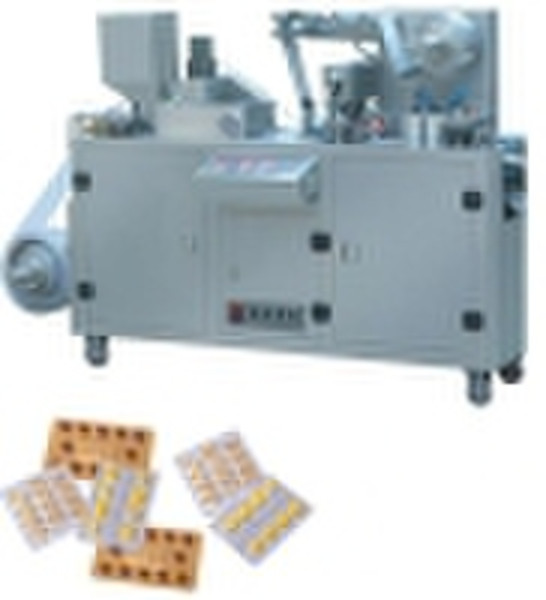

DPB-90 Flat plate Automatic Blister Packing Machin

Blister Packing Machine This Flat Plat Blister Packing Machine is specially designed for laboratory, dosage room in hospital, mini-pharmaceutical factory, mini-motor test workshop, and medicine institute. This machine is flat plate structure, positive pressure and convenient to operate. It is small and the stroke Length is adjustable. It is suitable for AL/PL package for any shape of objects, such as capsule, tablet, pellet, sugar-coated tablet, leisure candy, milk tablet, mini metal etc.Main Technical Parameters Cutting Frequency (Times/min)27Capacity (10 thousand pcs/h)1.1-6.5Stroke (mm)40-110 Max. Forming Area and Depth(mm)60×100×14Air Compressor(m³/min)≥0.3 (provided by user) oilless air compressor betterAir Pressure (Mpa)0.4 Standard Plate(mm) 80×57 can be manufactured as user's requirements Total Power380V/220V 50Hz 2.8kw PVC Hard Pieces(mm)0.25-0.35×90PTP Aluminum Foil(mm)0.02-0.035×90Mould Coolingtap water or recycling waterOverall Dimensions(mm)1300×400×1070(L×W×H)Weightkg220
